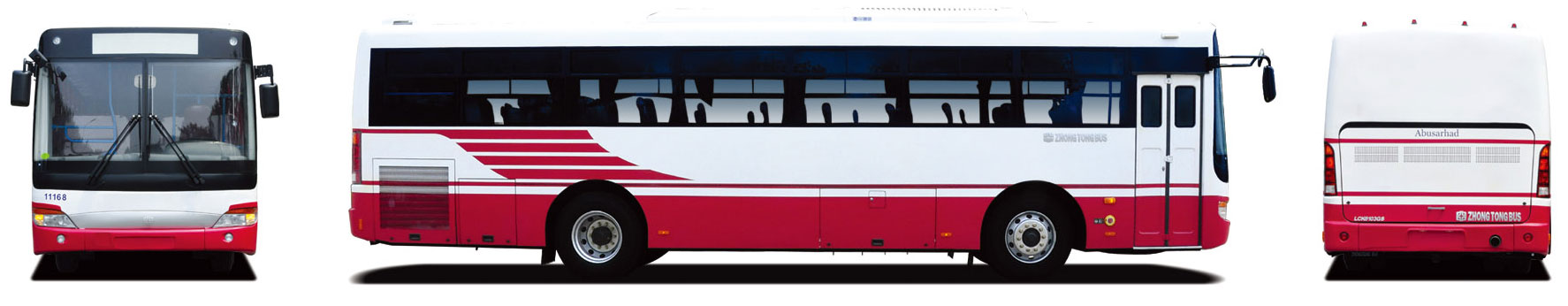

6103GS Group Bus (TOP)

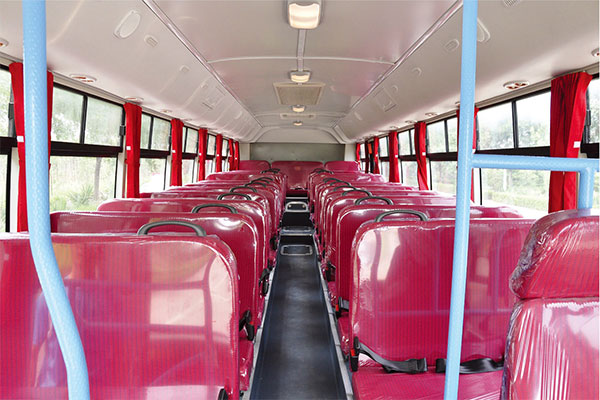

6103GS series group bus is particularly used for intercity bus. With more than 10 years' improvement and modification, it is won trust from the majority of our customers. The group bus is equipped with luggage compartment. Its 3+3/2+2 seat layout contributes to optimal space utilization. In 2012, we sold 2082 sets of 8-9m group bus to Saudi Arabia. Till now the cumulative sales of 6103GS bus in Saudi Arabia reaches 5000 sets.

Bus parameters total length (mm) 10670 Engine model YC6G240-20/C245 20
total width (mm) 2470 (standard)/2600 (widened) manufacturer Yuchai/Dongkang
total height (mm) 3170 (3220) position/fuel rear/diesel
inner height (mm) 2300 type straight 6-cylinder, turbocharging, intercooling,
wheelbase (mm) 5000 max power (kw) 177/180
front/rear suspension (mm) 2490/3180 max torque (N.M) 950/1043
approach angle/departure angle (º) 7.9/7.6 displacement (ml) 7800/8300
height of single step (mm) ≤380 cylinder diameter × stroke (mm) 112*132/114*135
max total mass defined by factory (kg) 15000
rated capacity (person) 47+1+1
max speed (km/h) 90
Item Standard configuration
Chassis parameters chassis LCK6103RG / Zhongtong Bus Holding Co., Ltd.
gearbox QJ805 (5-speed, manual, O/D)
clutch Φ420/ single plate, dry, helical spring, hydraulic control
front axle Dongfeng Dana, 5.5T
rear axle Dongfeng Dana, 11T
suspension leaf spring 8/11
steering integral power steering gear, from Hubei Tri-Ring Motor Steering Gear Co., Ltd.
brake double circuit brake/drum brake
fuel tank 300L
tire 11R22.5; quantity: 6+1 spare tires
accumulator/alternator 195A.h×2/150A 24V

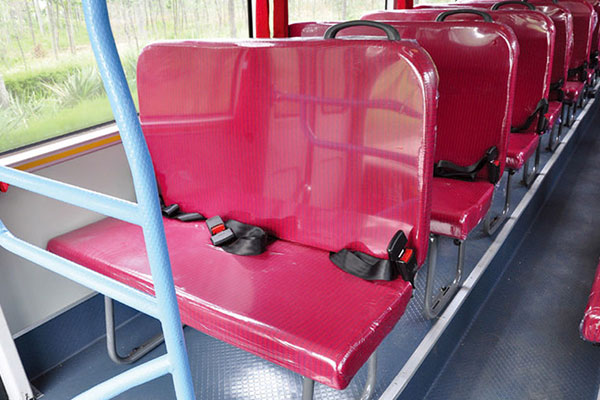

seat ZTZY3220 1021 adjustable driver seat (with 3-point safety belt), 2+2 seat layout, ZTZY2020 tourist guide seat
