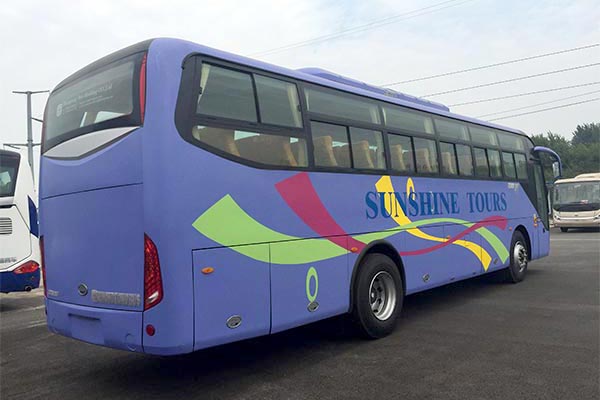

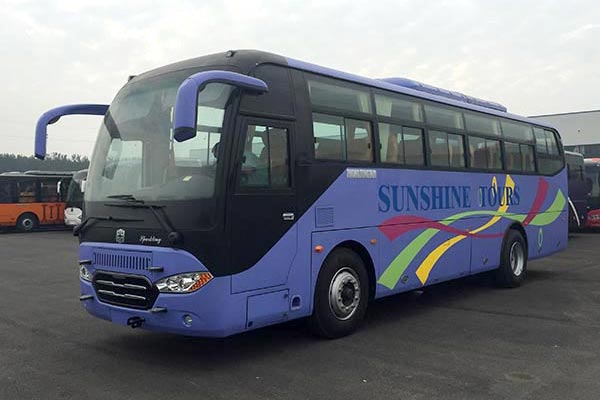

LCK6108T Coach

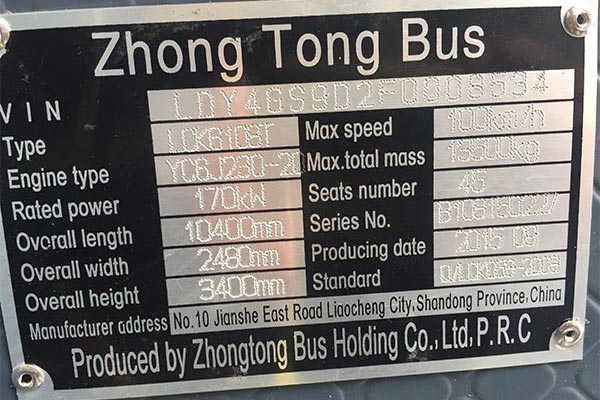

Overall specification Overall length (mm) 10400 Engine Engine model YC6J230-20
Overall width (mm) 2480 Manufacturer Chinese Yuchai
Overall height (mm) 3400 Engine position Front
Body inside height (mm) 1945 Engine Type 6 cylinders in line, turbocharged, water cooling, inter-cooling
Wheel base (mm) 5000 Max power(kw/rpm) 170
Front/rear overhang (mm) 2200/3200 Max torque(N.m/rpm) 810
Approach/departure (º) 11/9 displacement(L) 6.5
First step height (mm) 420 Bore/stroke mm 105X125
Max 13500 fuel Diesel
Seats capacity (person) 44+1 Emission standard Euro II
Max. speed km/h 100 Steering wheel position LHD
Luggage capacity (m3) 6.3
Items Standard Equipments
Chassis Data Manufacturer Made in China
Chassis model Made in China
Gear box Manual 6 speed S6-80
Front axle front axle,5.5 Ton
Rear axle rear axle, 9Ton
Suspension leaf spring 10/12
Steering Integral power steering
Brake Dual circuit air braking, drum brake
Fuel tank 380 L
Tyre 11R22.5 Double Coin
Battery /dynamo 6-QA-165/110A
Others Air dryer, clutch booster, brake exhaust, ABS
Bus specification Body construction Semi-integral,
Interior trim Formed soft interior trim, air distributors and reading lights in the luggage rack
Door & door pump Front aluminum door, outside swing, domestic door pump
Window, windscreen Front rubber-laminated windscreen,
rear window toughened safety glass
sliding side window
Rear mirror system Manual motion
A/C system 26000Kcal/h +Driving fan
Heating system Front windscreen defroster
Video system 250G MP5+ one 17''LCD in front
Lamps New type combination lamp front and rear, rear brake light
Wiper Electric wiper
Luggage door Steel panel overturning opening door

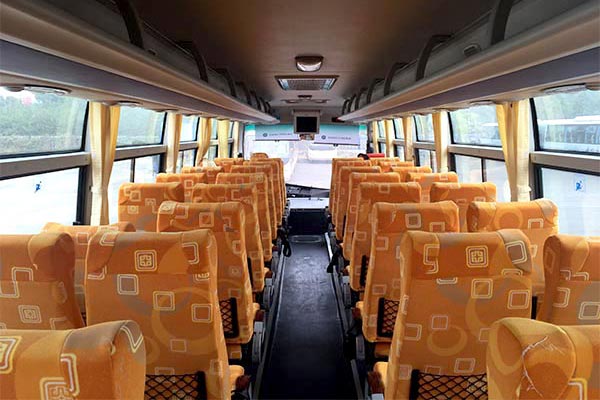

Seat 2+2 layout, ZTZY3192,adjusting type,
Paint High quality paint
others skid proof floor leather, electric clock, windscreen sun visor, side window curtain, fire extinguisher, Stainless steel decoration cover, bull bar
