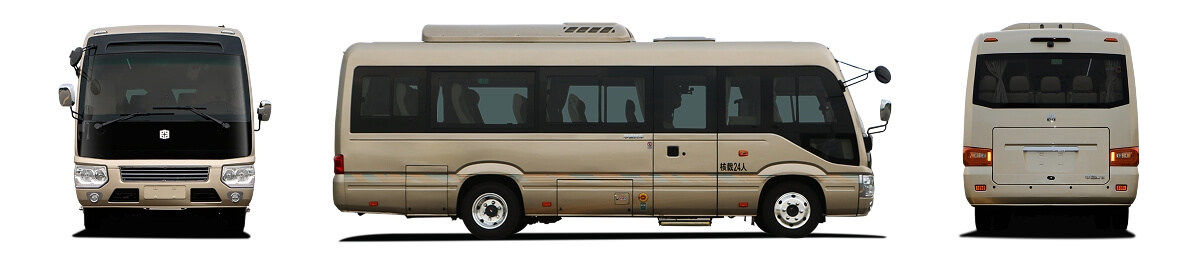

LCK6729EVAY Electric Coach

Inquiry Form Add To Cart

Features

Suitable for business transportation, group mobility, tourism, and other mid-to-high-end passenger transport applications.
Equipped with high-efficiency power electronics technology and a new-generation SiC MOSFET (Silicon Carbide) power controller, this electric coach improves power conversion efficiency and reduces overall energy consumption by 3%–5% compared with conventional IGBT-based power control systems, extending driving range.

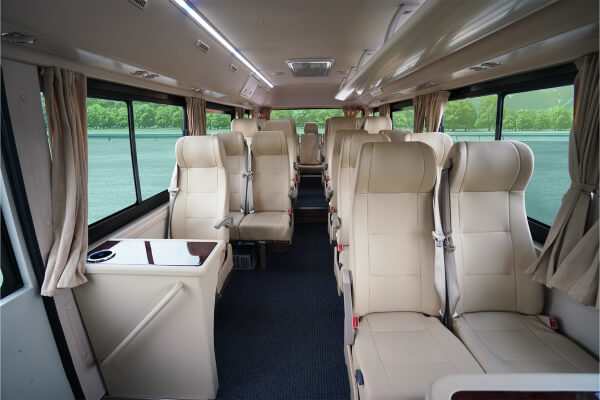

The fully flat-floor design improves space utilization and provides a more spacious passenger cabin.
Featuring a high-torque, fast-response powertrain, it achieves a maximum gradeability of over 22% and adapts to complex road conditions and diverse terrains.

Specifications

LWH (mm)	722522402950
Battery capacity (kWh)	CATL 165.68
Drive motor	Permanent-magnet synchronous motor
Gross weight (kg)	8800
Front/Rear suspension (mm)	1150/2140
Wheelbase (mm)	3935
Structure	Full monocoque structure
Max. Speed (km/h)	90
Suspension	Air suspension
Axle (T)	Front axle 3, Rear axle 5.8
Capacity (seats)	10-28
Max. Power (kW)	200
Brake	Front disc brakes / Rear disc brakes

Details
